Odyssey Clutch Pro Freecoaster Hub Parts

Replacement parts for Odyssey Clutch Pro Freecoaster Hub.

Parts List
Note: ODW-xxx-xxx part numbers are interchangeable with W-xxx-xxx

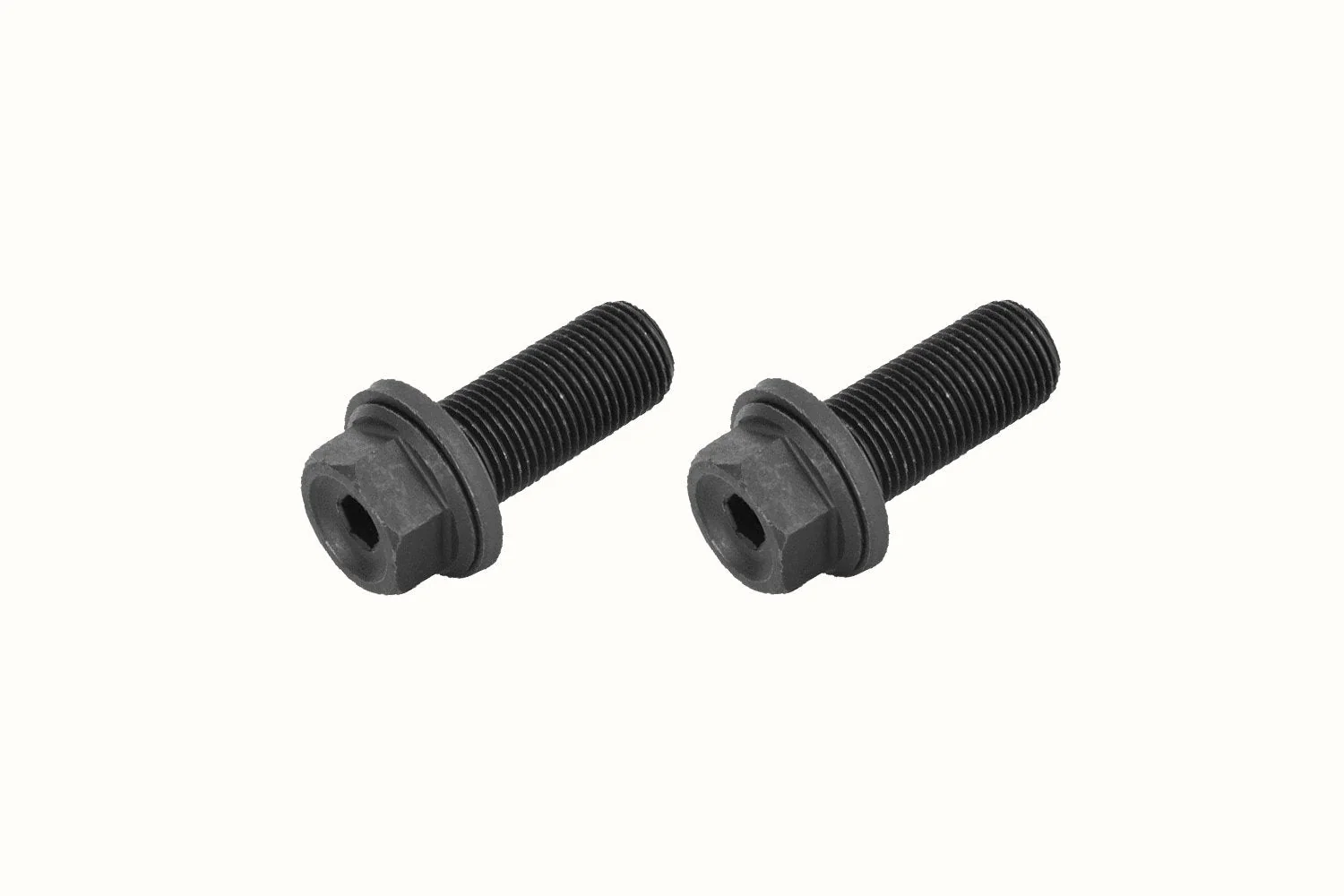

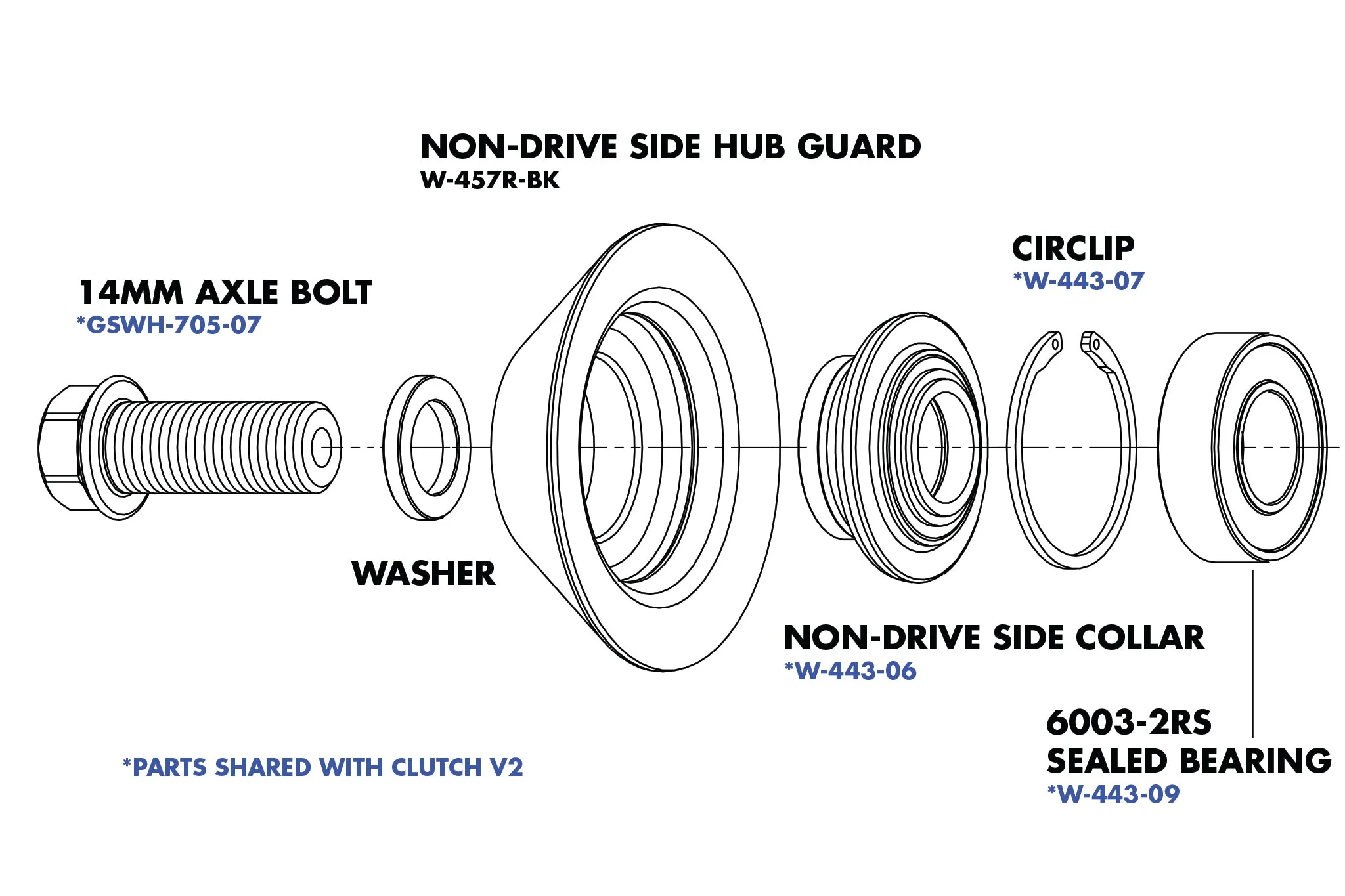

GSWH-705-07: 14mm Axle Bolts (Pair)

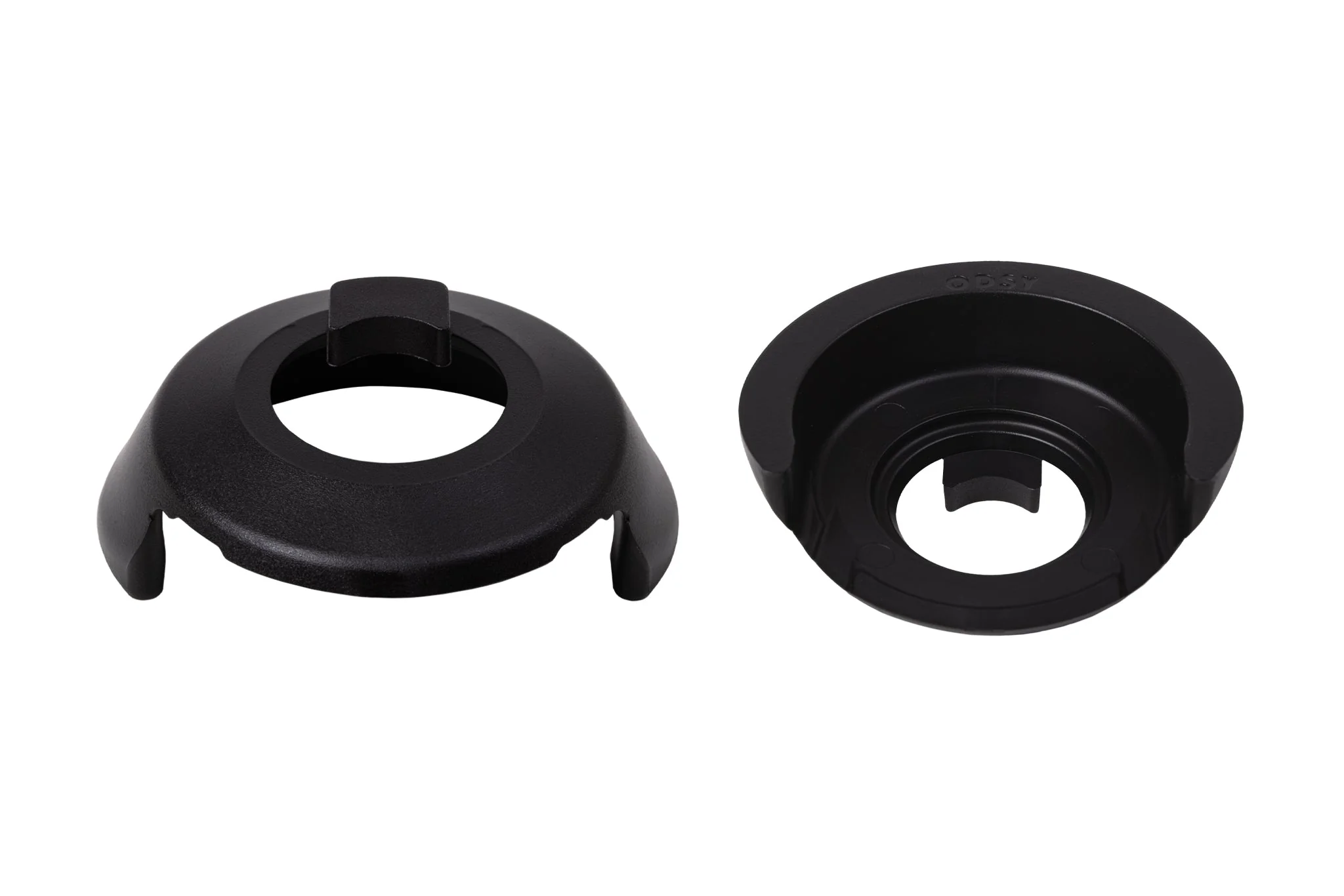

ODW-457R-BK: Non-Drive Side Plastic Hub Guard

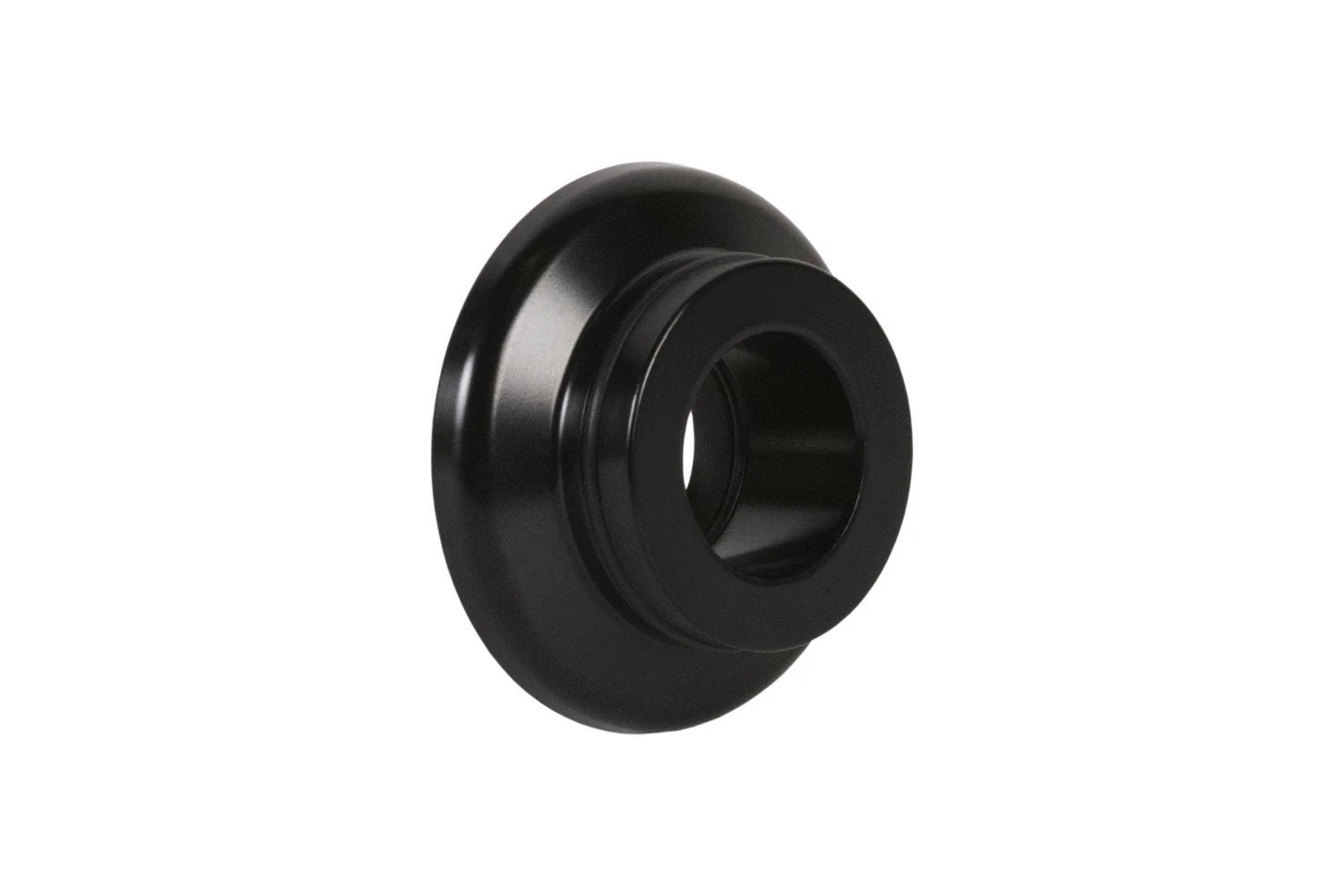

ODW-443-06: Non-Drive Side Collar
ODW-443-07: Non-Drive Side Circlip

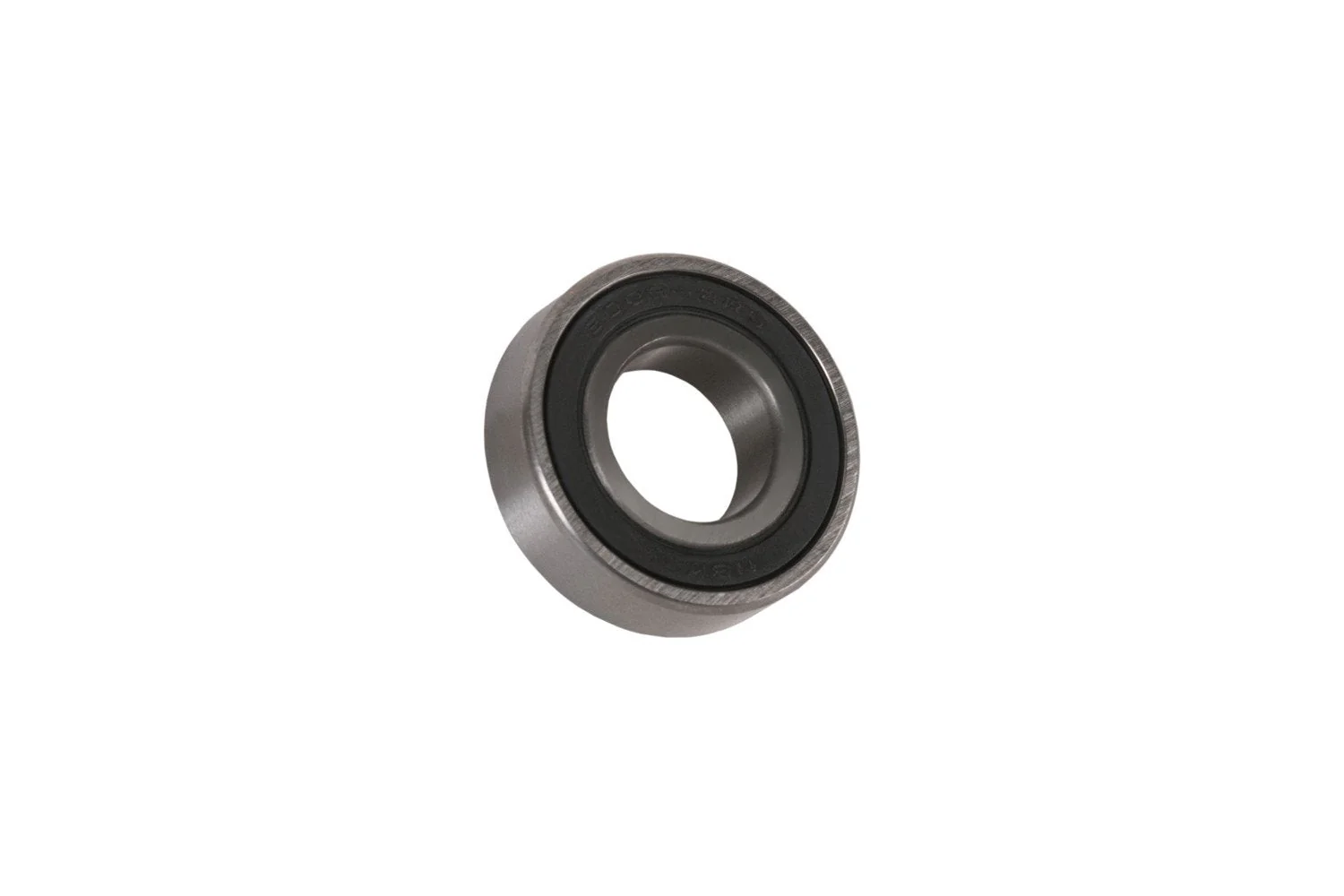

ODW-443-09: Non-Drive Side 6003-2R2 Sealed Bearing

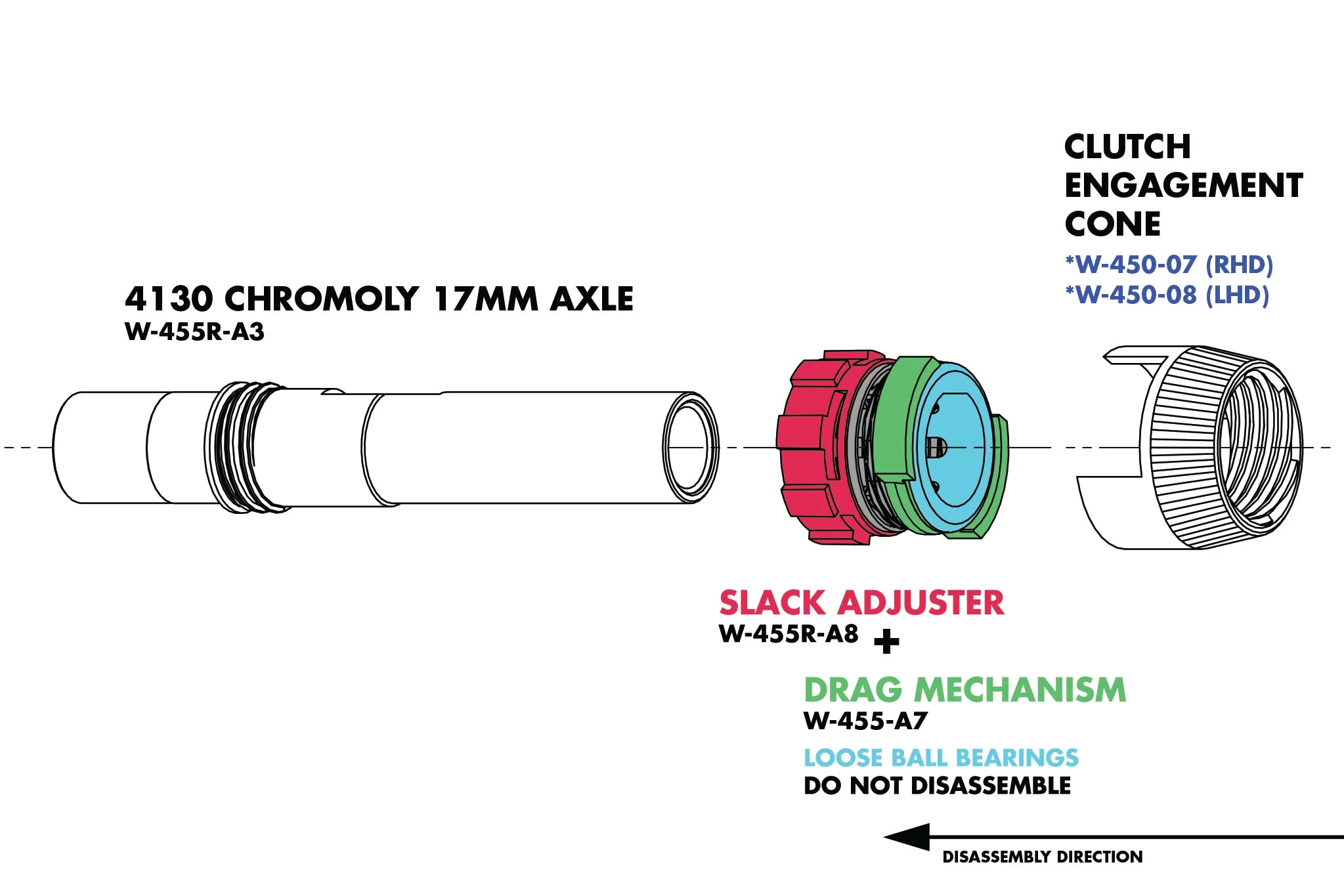

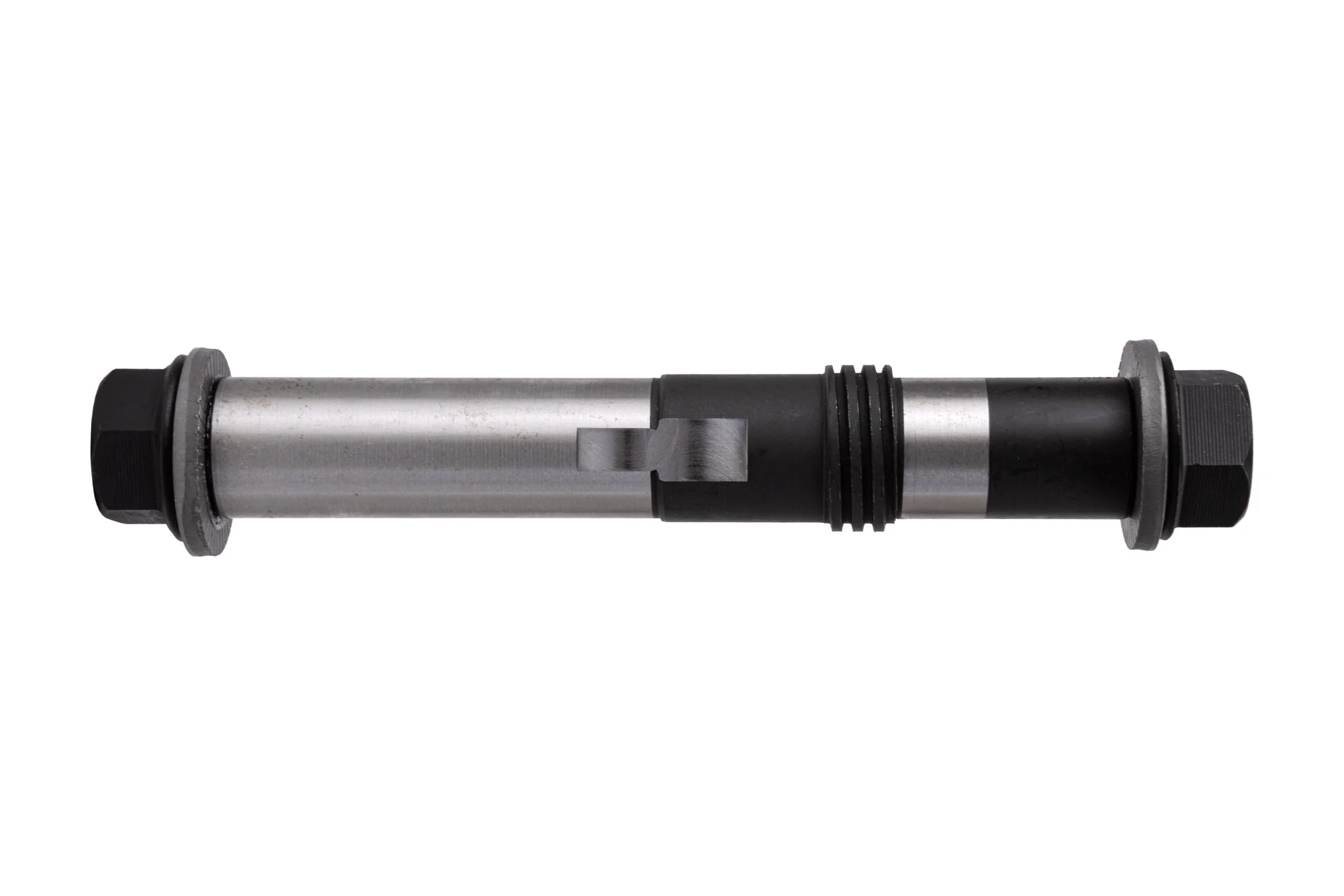

ODW-455R-A3: 4130 Chromoly 17mm Female Axle (for 14mm in-bound Bolts)

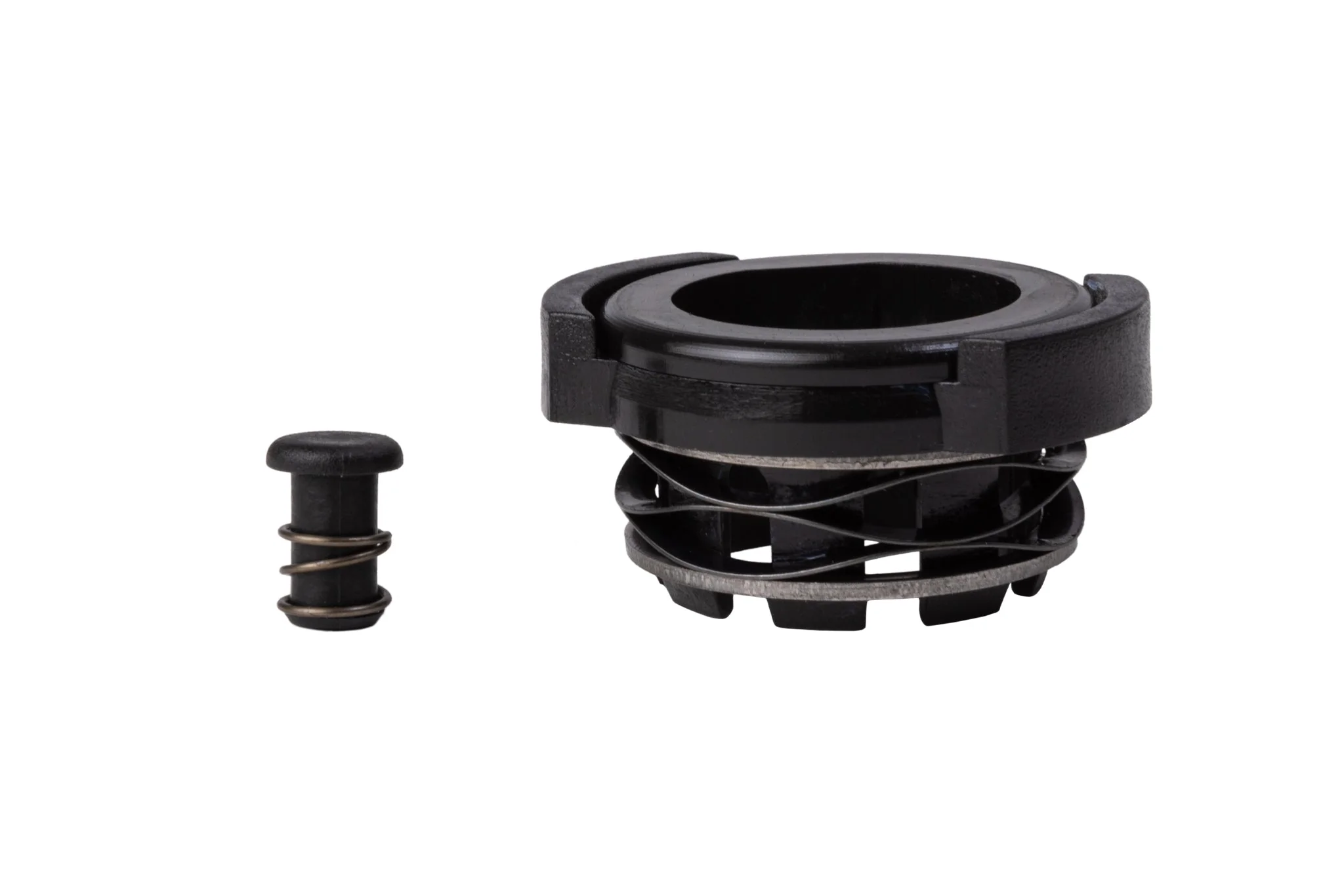

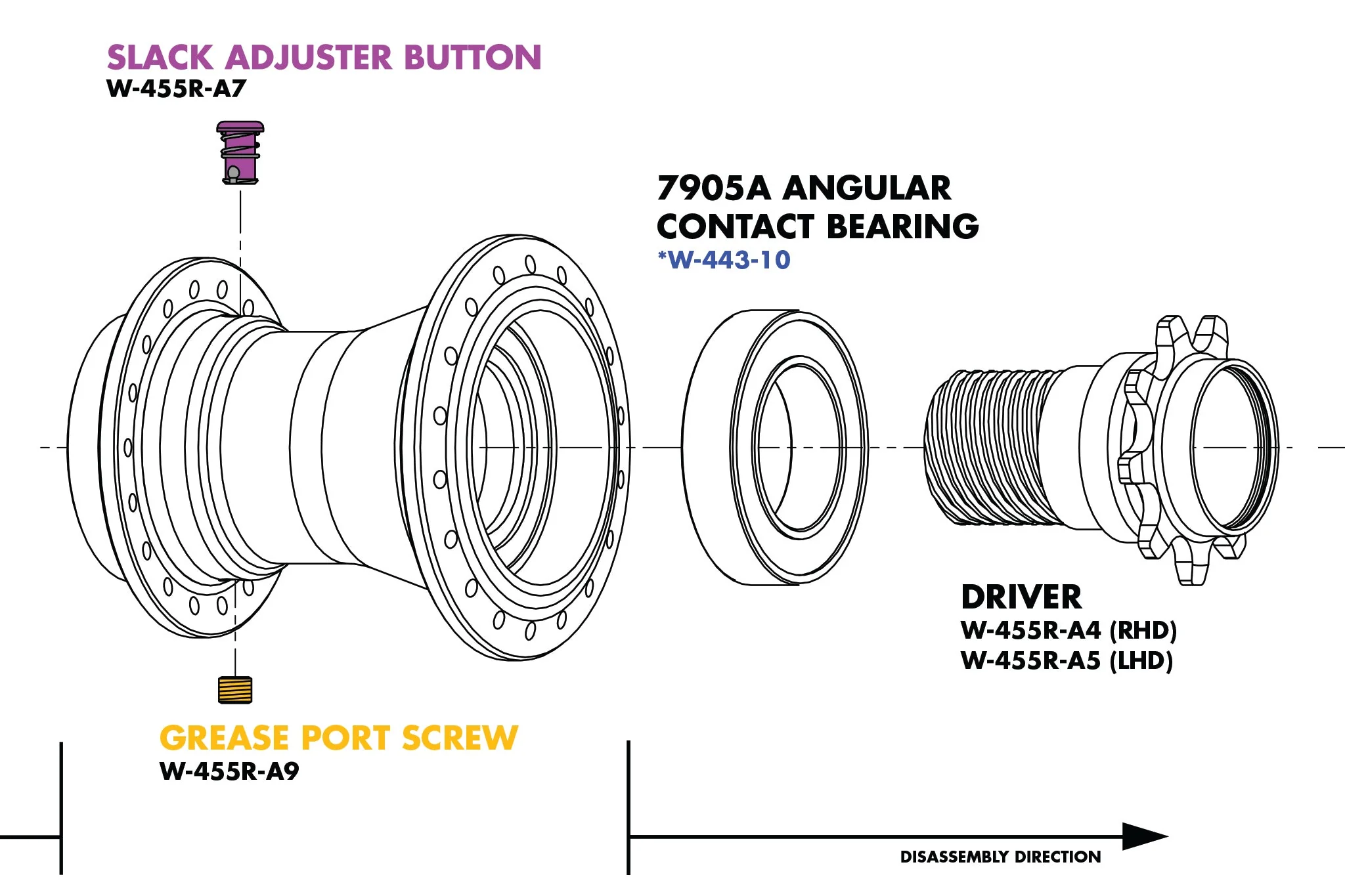

ODW-455R-A7: Drag Mechanism and Slack Adjuster Button with Spring

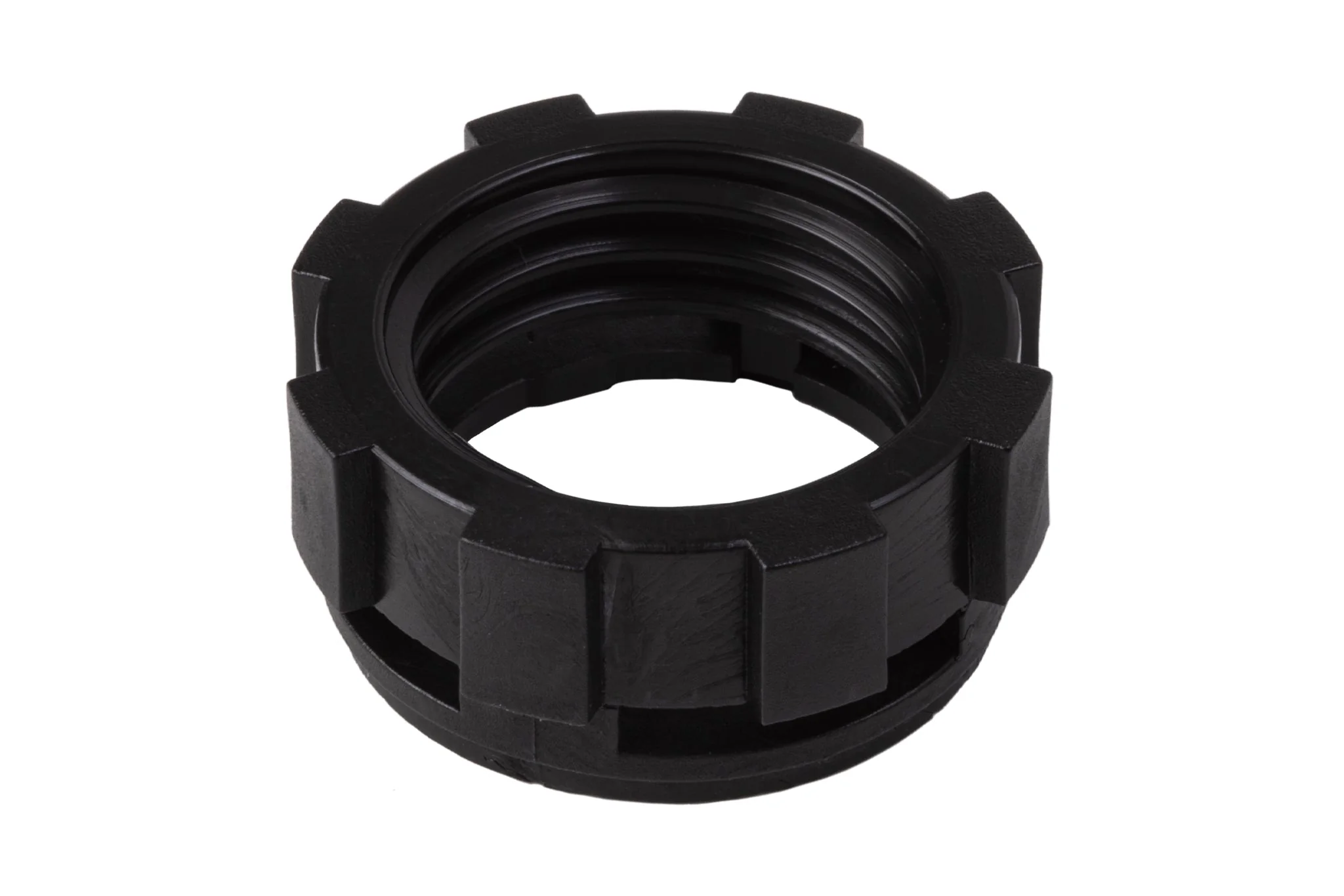

ODW-455R-A8: Slack Adjuster

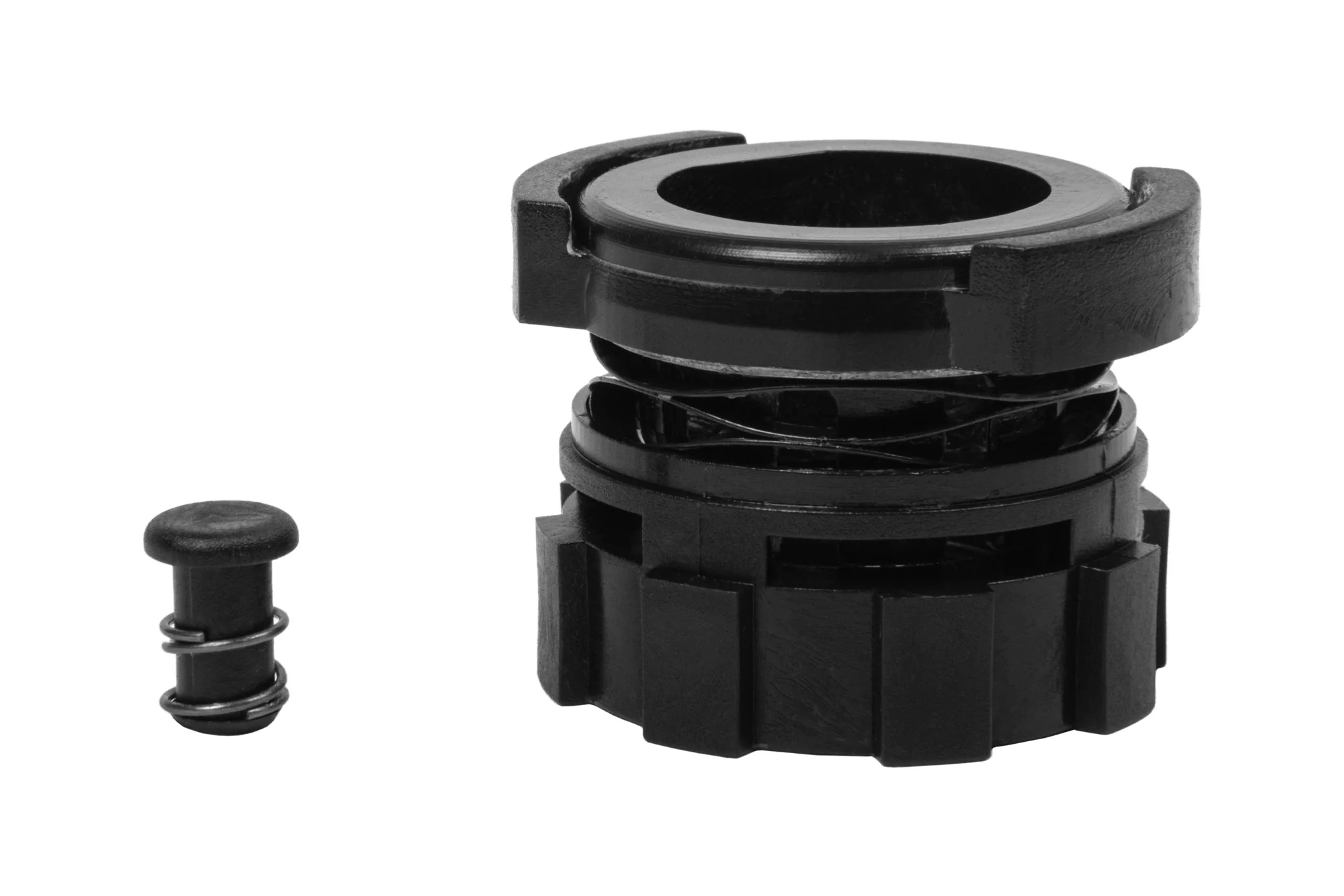

ODW-455R-A13: Slack/Drag Assembly (not in diagram - substitute for ODW-455R-A7 and ODW-455R-A8)

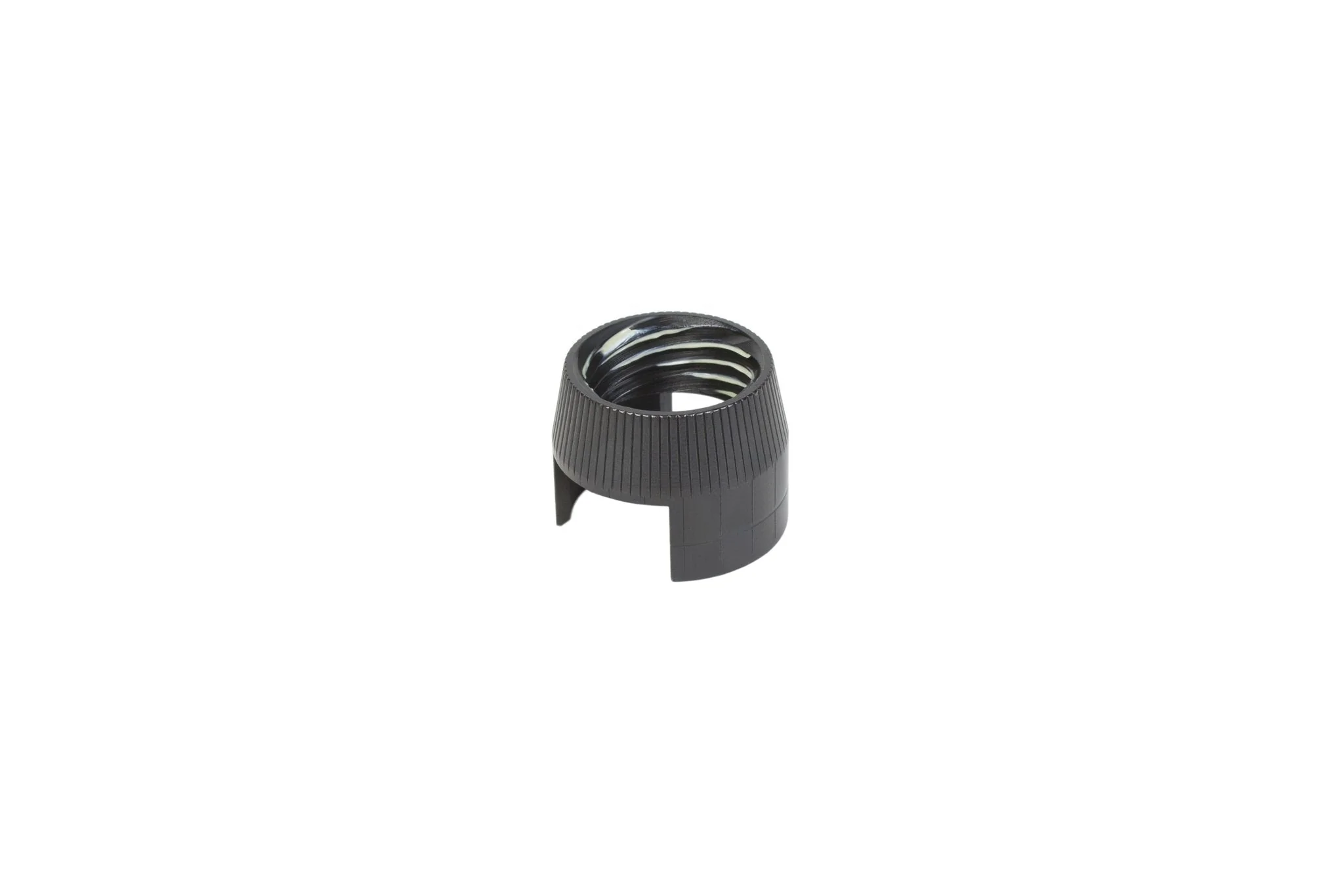

ODW-450-07: RHD Engagement Cone
ODW-450-08: LHD Engagement Cone
ODW-455R-A9: Grease Port Screw

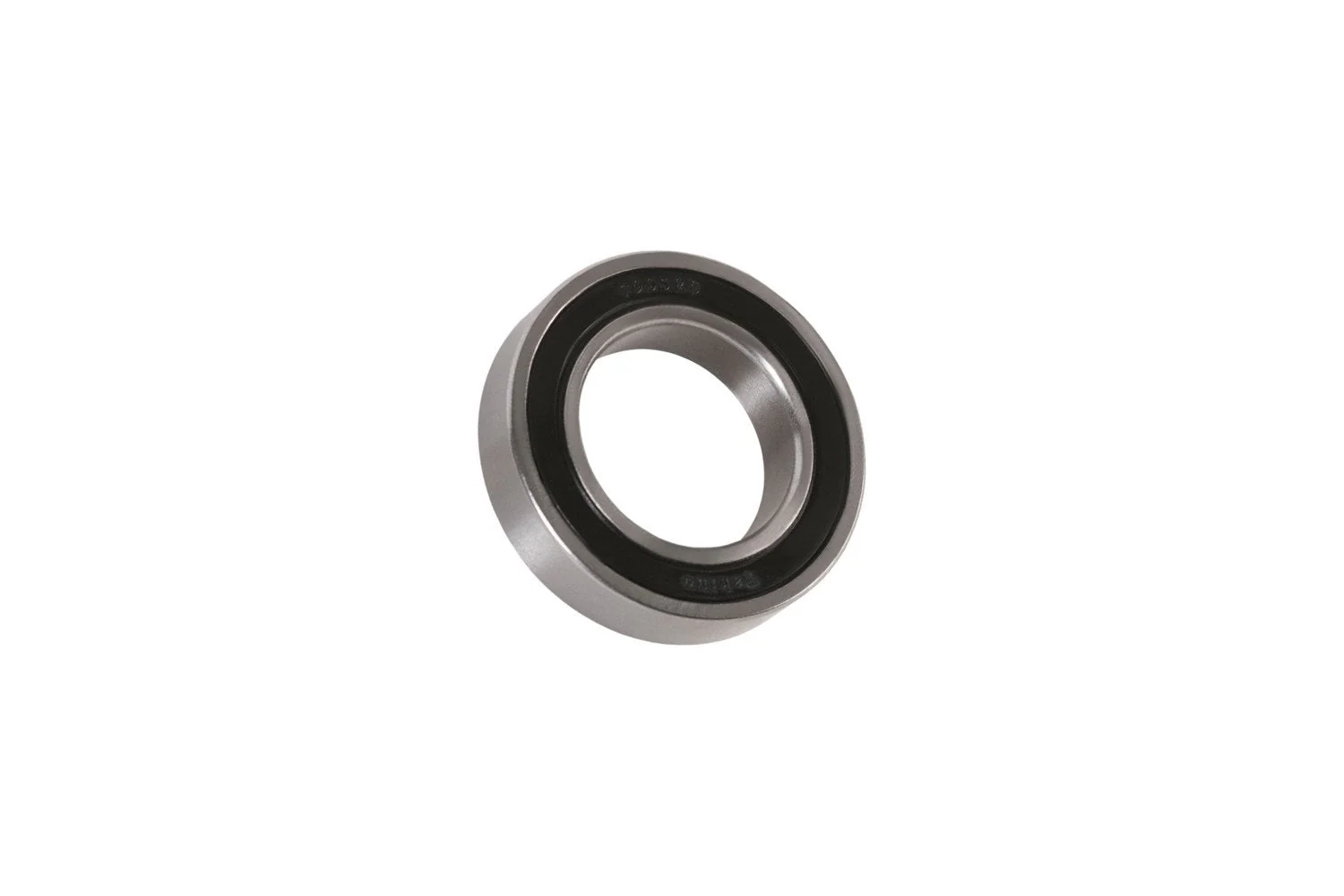

ODW-443-10: Drive Side 7905A Angular Contact Bearing

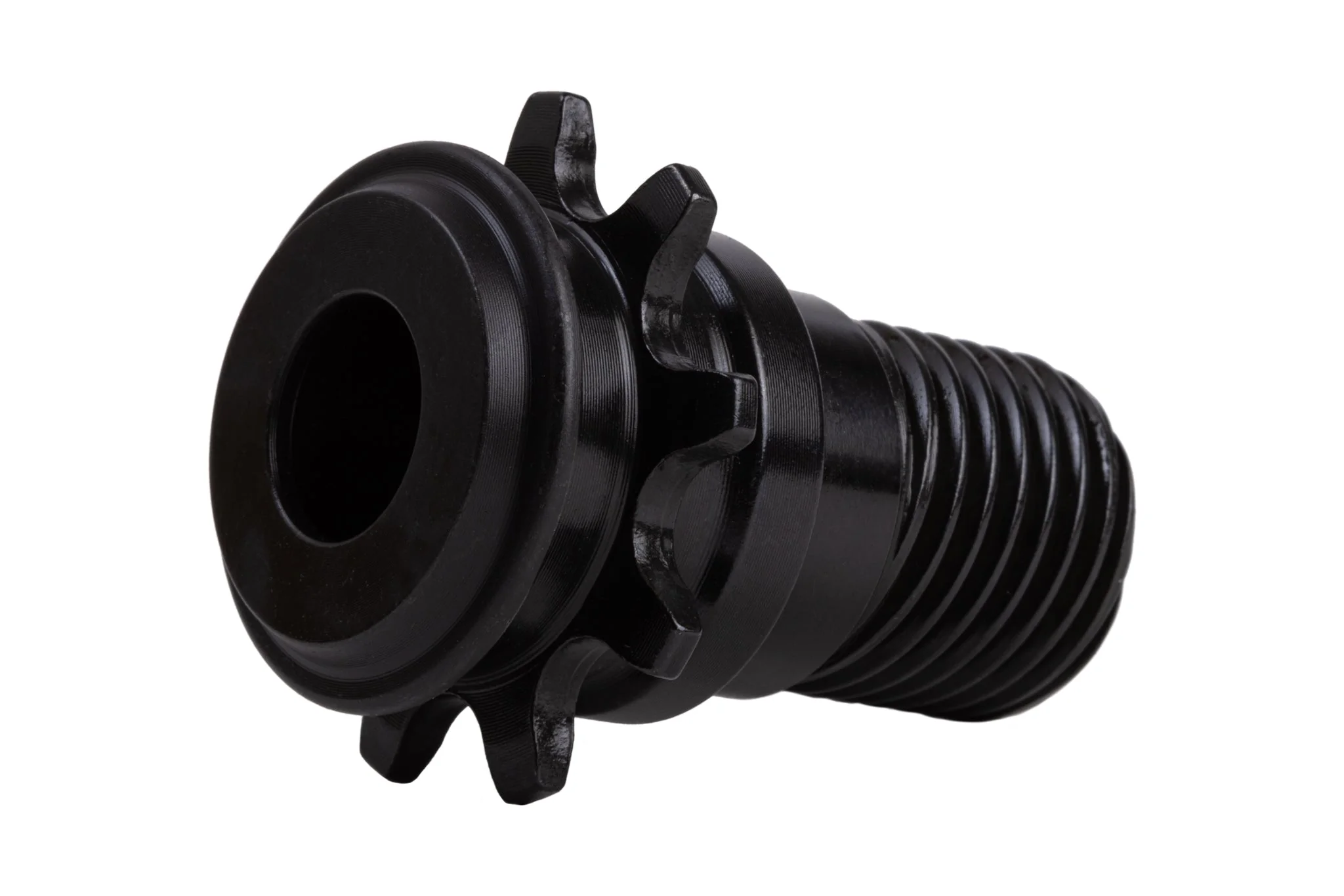

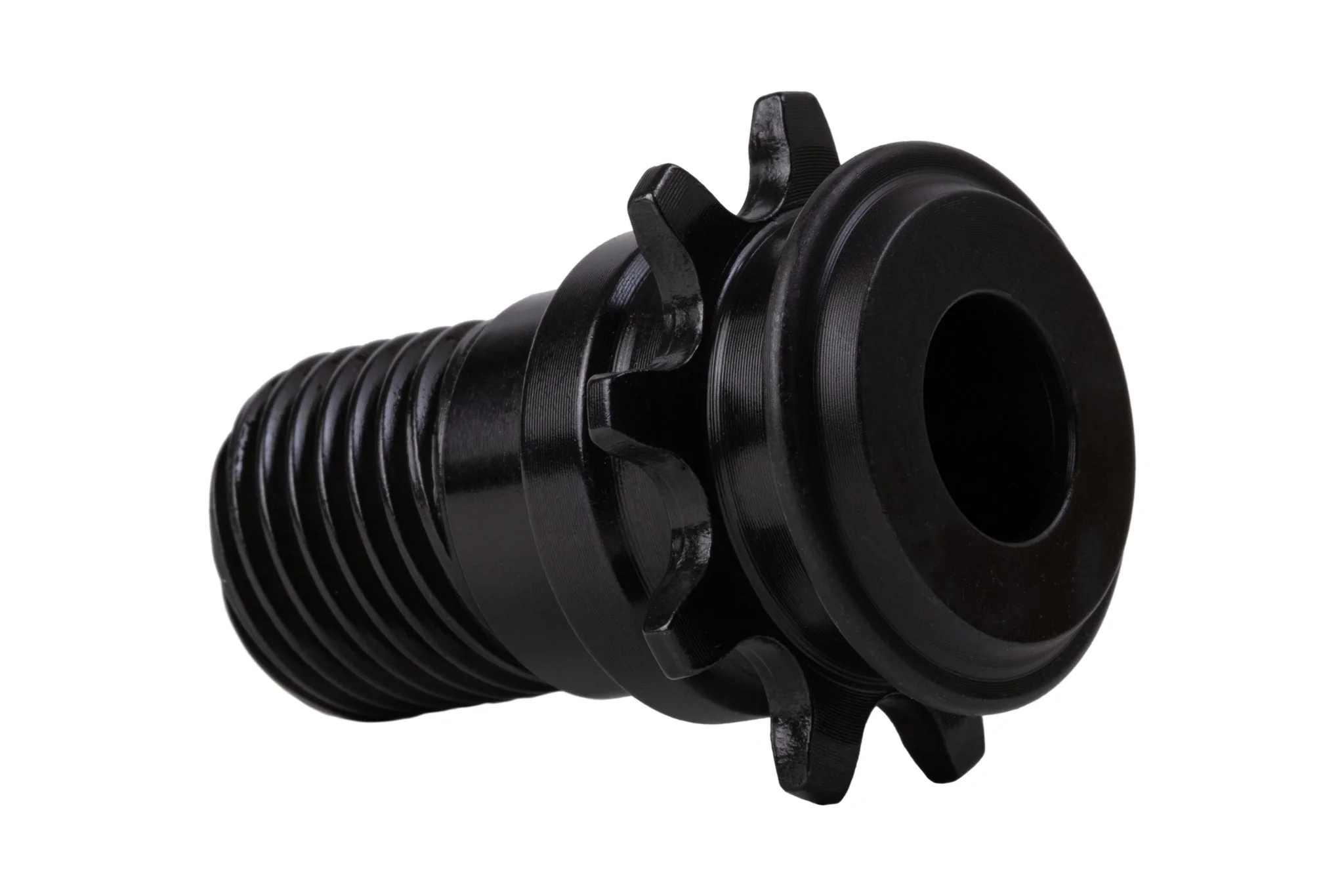

ODW-455R-A4: RHD 9t Assembled Driver
ODW-455R-A5: LHD 9t Assembled Driver

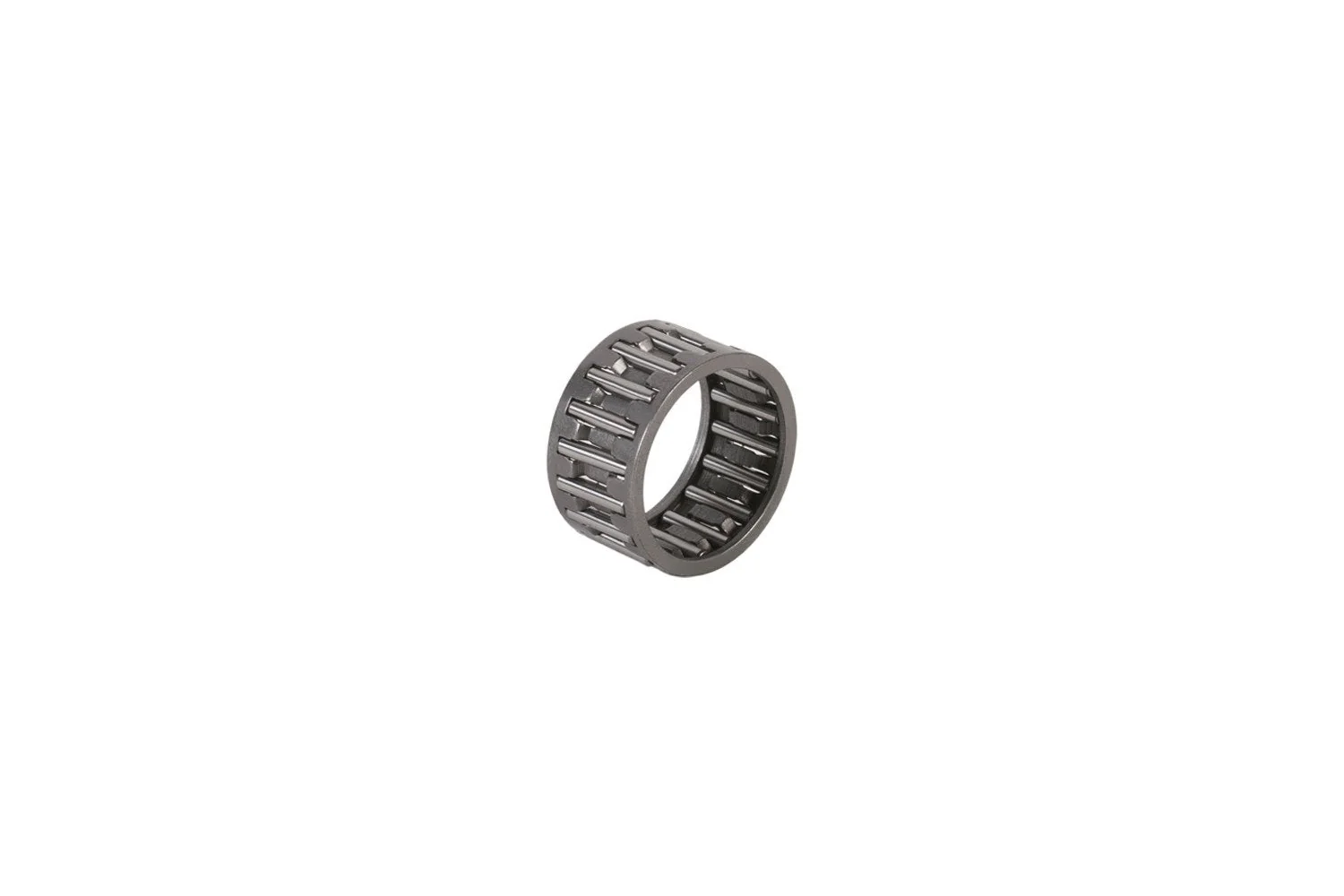

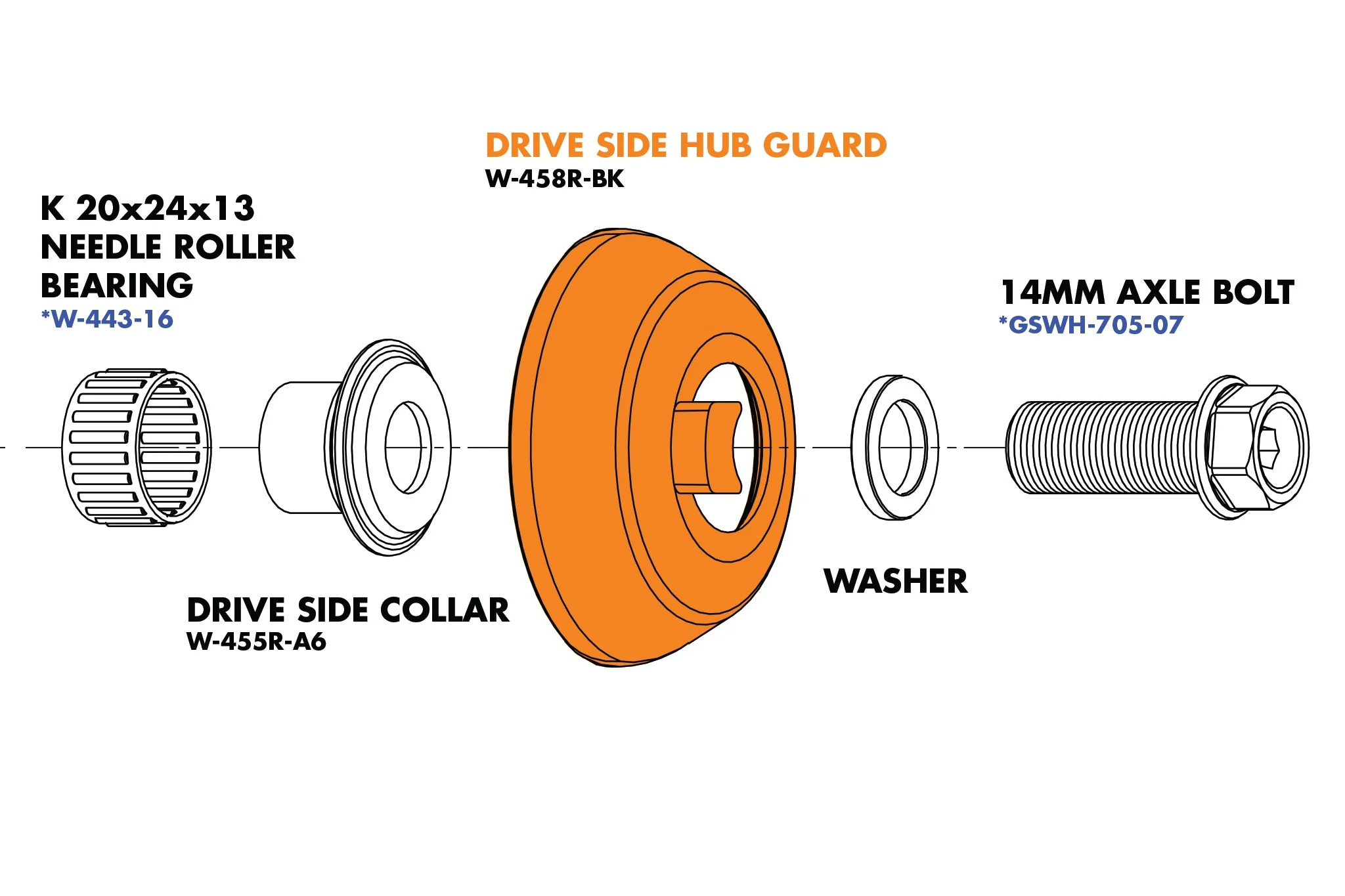

ODW-443-16: Drive Side K-20x34x14 Needle Roller Bearing

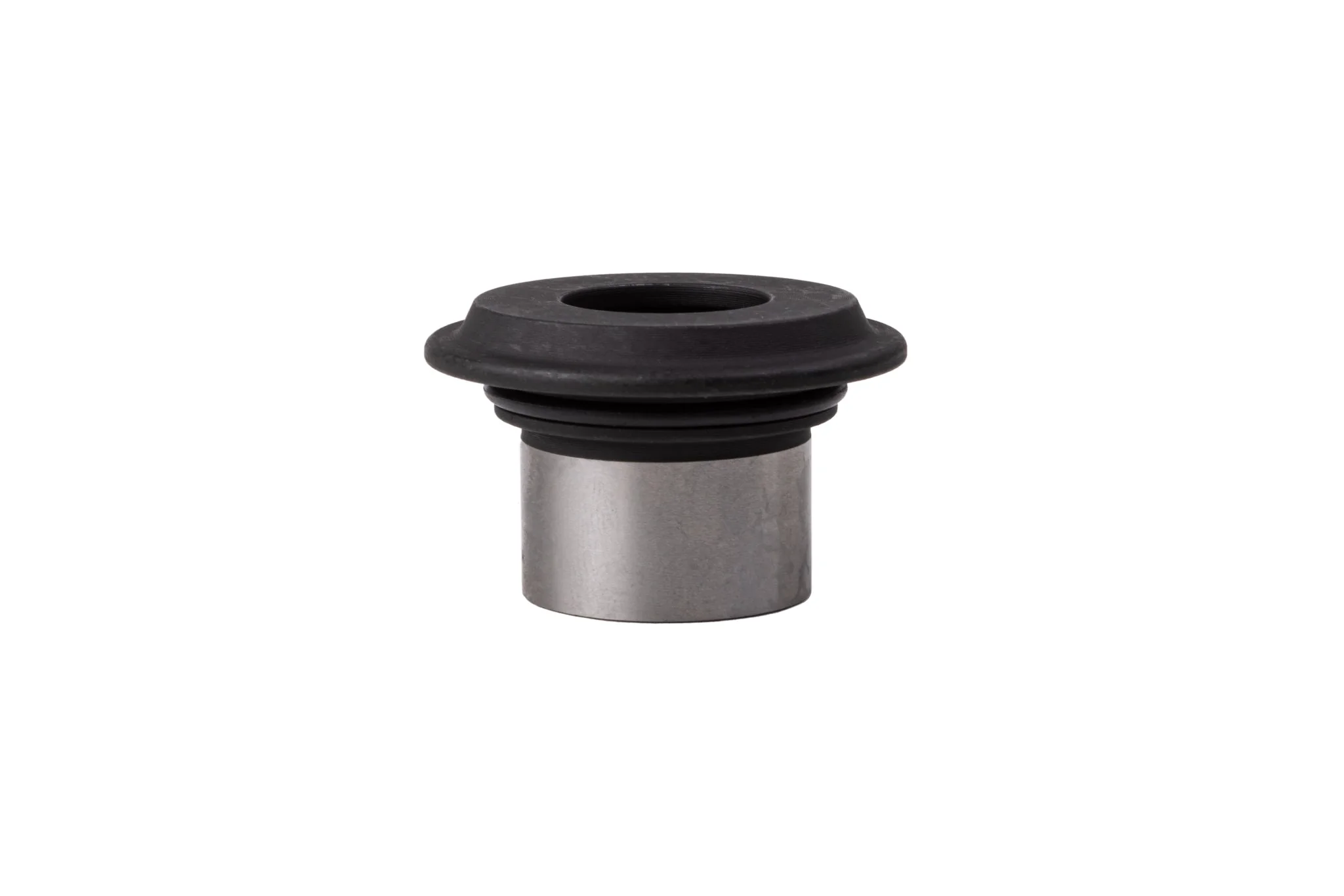

ODW-455R-A14 (Previously A6 & A12): Drive Side Collar
ODW-458R-BK: Drive Side Plastic Hub Guard

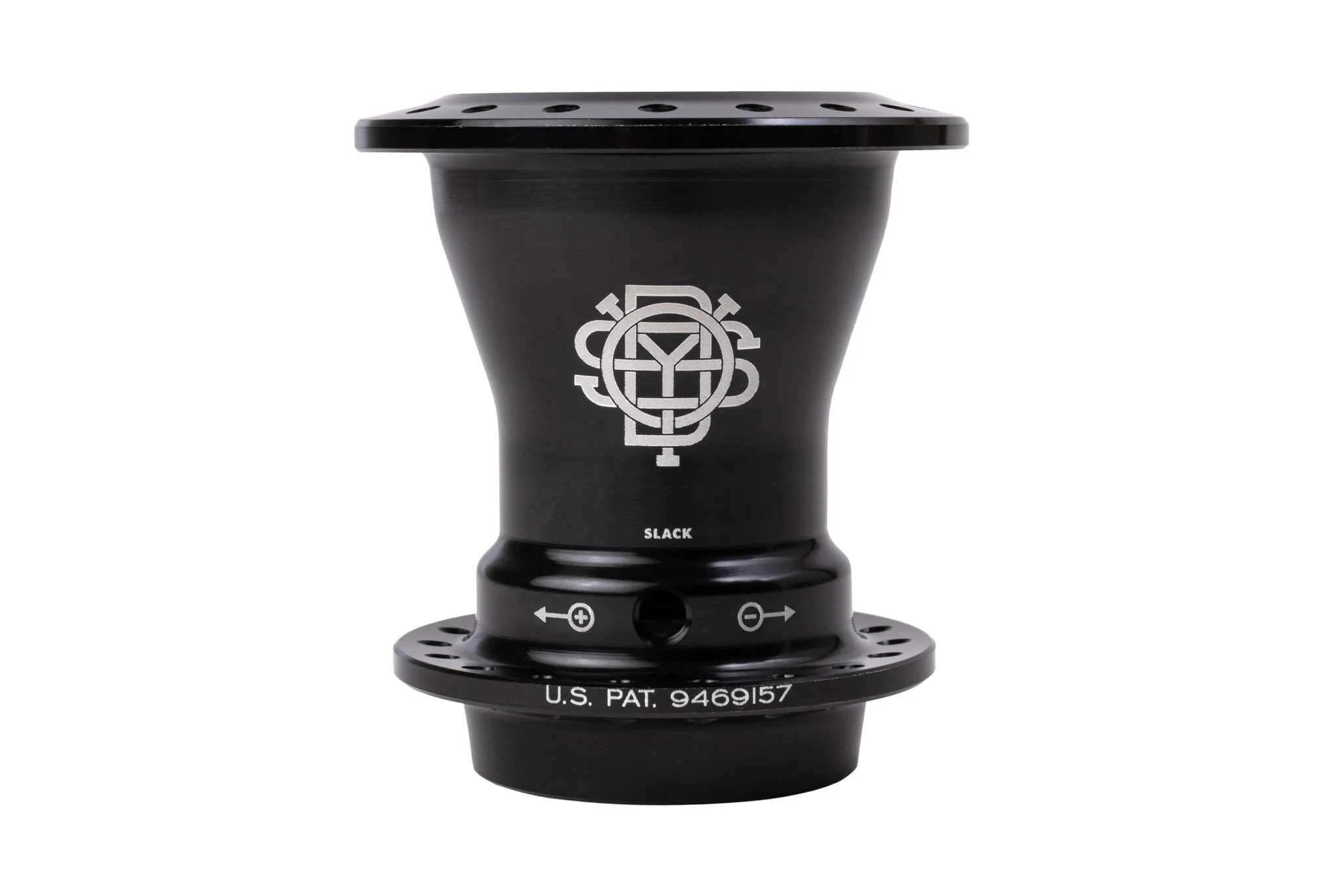

ODW-455R-A1: RHD Hub Shell
ODW-455R-A2: LHD Hub Shell

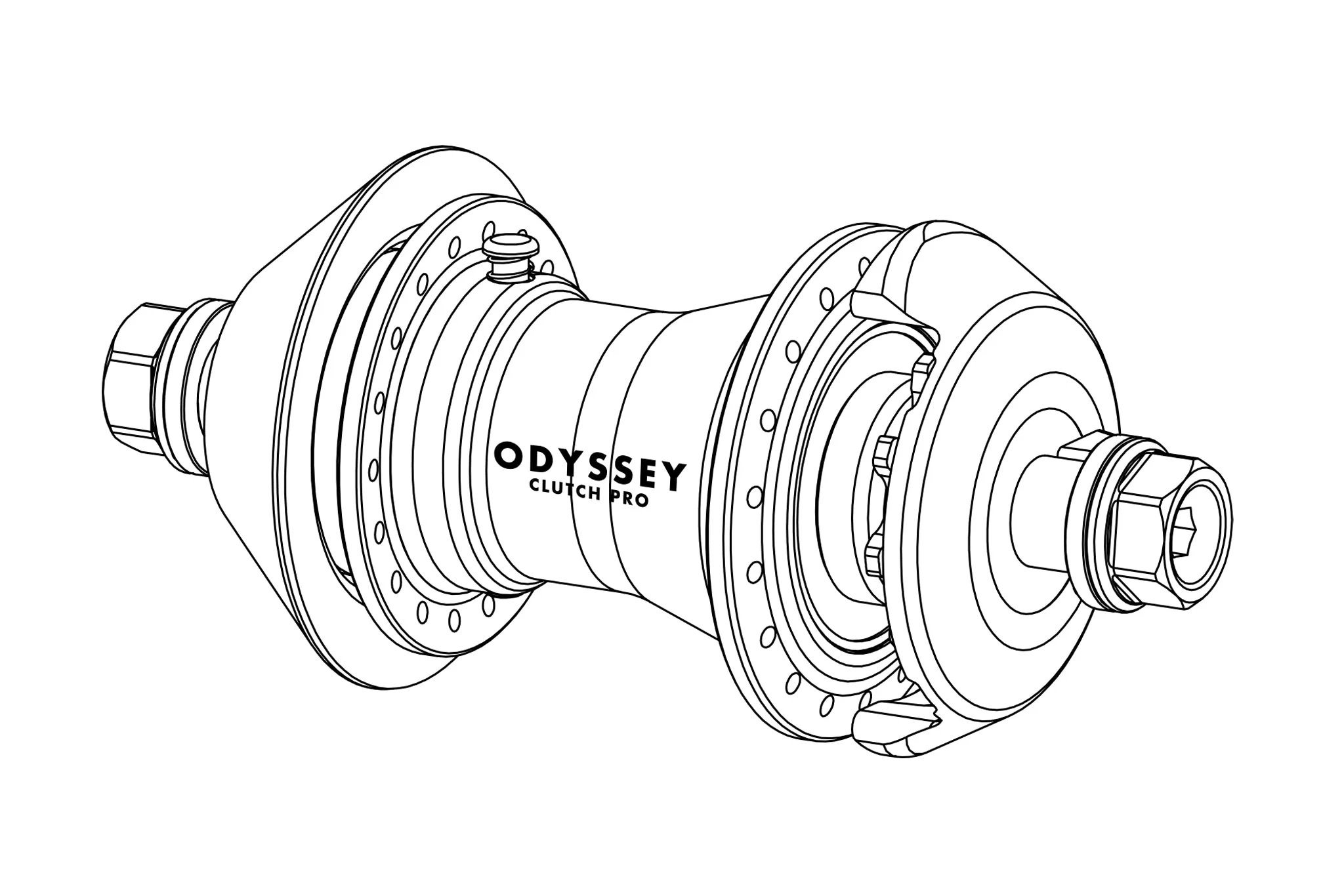

Overview Exploded View Tech Sheet
